We offers Welded Wire Mesh, Welded Wire Mesh Panel. Welded wire mesh has wide applications in the construction, agricultural and industries, due to its high rigidity and strength. It is increasingly used in security applications and as machine guards.

Supplier:Honghuang steel rebar chair factory
TEL:0086-0318-3537333
MOB:13932829987
FAX:0086-0318-7756199
EMAIL:

sales@cnhardwaremesh.com

Welded Wire Mesh are introduced in detail

Tags:

welded factory

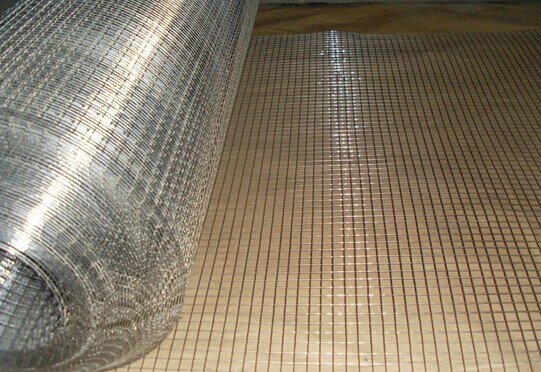

Welded Wire Mesh

1.Material: low carbon steel wire, galvanized steel wire, stainless steel wire
2. Specification:
a. Hole: 1/4"--4"
   b. Wire Diameter:0.3mm--8.0mm
   c. Width:0.5-1.8m/roll
   d. Length:15-100m/roll
3. Welded Wire Mesh Style:
a. Stainless steel wire welded wire mesh

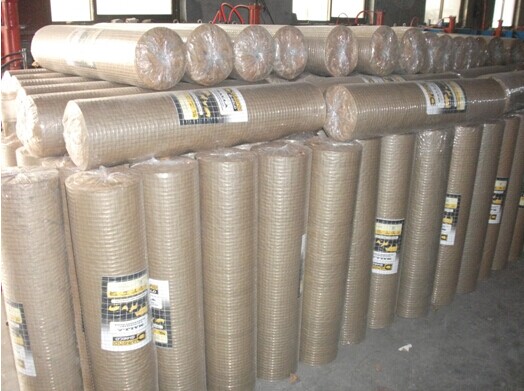

   b. Electro or hot dipped galvanized after or before welding

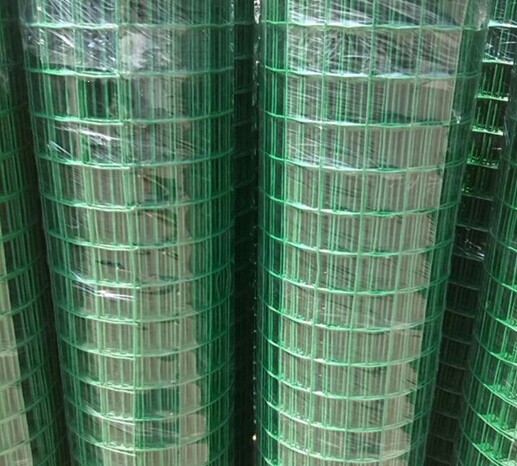

c. PVC coated galvanized welded wire mesh

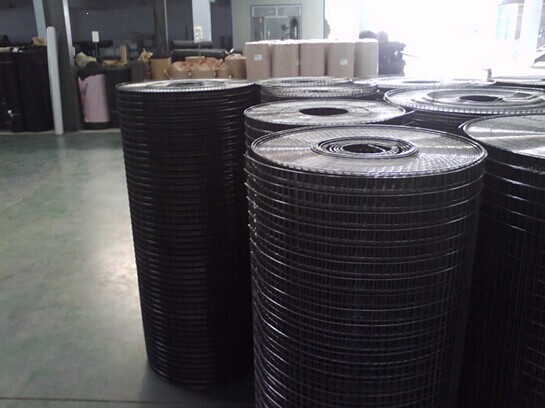

d. Black wire/ no coated welded wire mesh
4. Welded Wire Mesh Application:
a. Welded wire mesh is used in industry and agriculture building
b. Transportation and mining for all such purposes as poultry houses
c. Egg baskets
d. Runway enclosures
e. Draining rack
f. Fruit drying screen
5.Welded Wire Mesh Standard Size:

Specification of Welded Wire Mesh:
Opening		Wire Diameter
In inch	In metric unit(mm)	Wire Diameter
1/4" x 1/4"	6.4mm x 6.4mm	22,23,24
3/8" x 3/8"	10.6mm x 10.6mm	19,20,21,22
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21,22,23
5/8" x 5/8"	16mm x 16mm	18,19,20,21,
3/4" x 3/4"	19.1mm x 19.1mm	16,17,18,19,20,21
1" x 1/2"	25.4mm x 12.7mm	16,17,18,19,20,21
1-1/2" x 1-1/2"	38mm x 38mm	14,15,16,17,18,19
1" x 2"	25.4mm x 50.8mm	14,15,16
2" x 2"	50.8mm x 50.8mm	12,13,14,15,16
Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request.

PVC Coated Welded Wire Mesh:
Opening		Wire Diameter
In inch	In metric unit(mm)	Wire Diameter
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21
3/4" x 3/4"	19mm x 19mm	16,17,18,19,20,21
1" x 1"	25.4mm x 25.4mm	15,16,17,18,19,20
Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.2m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request.
